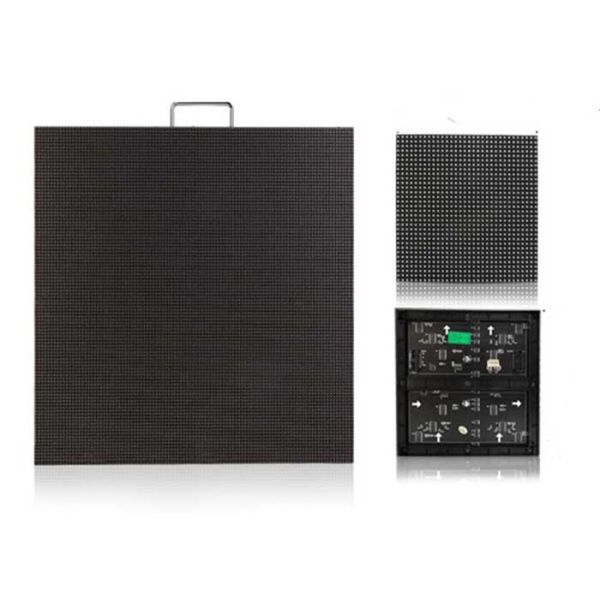

SMD P1.92 Wireless Indoor Fixed LED Display Front / Back Service Avaliable

Product Categories

Shenzhen Bako Vision Technology Co., Ltd

Contact Now

Name: SMD P192 Wireless Indoor Fixed LED Display Front Back Service Avaliable
Brand: BAKOVISION
Price: 1 USD

Brand Name : BAKOVISION

Model Number : PH1.56

Certification : CE RoHS EMC UL

Place of Origin : China

MOQ : 1 square meter

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000 square meter per month

Delivery Time : 20-25 work days

Packaging Details : Flight Case or Wooden Case

Pixel Configuration : SMD1010

Module Dimensions : 200 × 300

Single Cabinet Weight : 4.6 kg/pane

Processing : 16 bit

Average Power Consumption : 220 w/m²

Driving Method : 1/26Scan

Contact Now

SMD P1.92 High Grayscale Indoor Fixed LED Display Front Service Back Service Wireless High Brightness

The picture presented by the product is vivid due to the high contrast. It is achieved by using black LED lights.

Adopted NOVA control system to improve product refresh rate so that there is no scanning line when shooting.

The quick lock design makes installation and dis-assembly convenient and easy to operate.

The new structure design makes the product installation flexible, thus meeting various installation requirements.

SMD P1.92 Wireless Indoor Fixed LED Display Front / Back Service Avaliable

Light weight and low power consumption greatly reduce labor costs, operating costs and transportation costs.

A good heat dissipation system makes its performance more stable and better protect the product.

The product's noiseless design makes it better served in offices and conference rooms.

SMD P1.92 Wireless Indoor Fixed LED Display Front / Back Service Avaliable

Physical Pitch	1.92mm
Pixel Configuration	SMD1010
Pixel Density	10,000pixels/m² 12,288pixels/panel
Module Dimensions (W × H) (mm)	200 × 300
Panel Dimensions (mm)	400 × 300
NO .of Modules Per Panel (W × H)	2 × 1
Physical Resolution of Module (W × H)	208 × 156
Physical Resolution of Panel (W × H)	208 × 156
Panel Material	die-casting
Single Cabinet Weight	4.6 kg/pane
Processing	16 bit
Colors	281 trillion
Contrast Ratio	4,000 :1
Average Power Consumption	220 w/m²
Max Power Consumption	800 w/m²
Driving Method	1/26Scan
Brightness	>800 nit
Refresh Rate	≥1,500 Hz
Horizontal Viewing Angle	140°
Vertical Viewing angle	140°
Expected Lifetime	≥50,000Hour
Operating Temp/Humidity	-20°C - 50 °C / 10% - 90
Storage Temp/humidity	-40 °C - 60°C / 10% - 85%
Max Stacking	20 panel
Max Hanging	16 panel
Servicing	Front / Back
IP Rating (Front/Rear)	IP 30
Certification	CCC, CE, ETL, FC
